Dalma Mall

Dalma Mall

Location of Project - City:
Abu Dhabi
Location of Project - Country:
United Arab Emirates

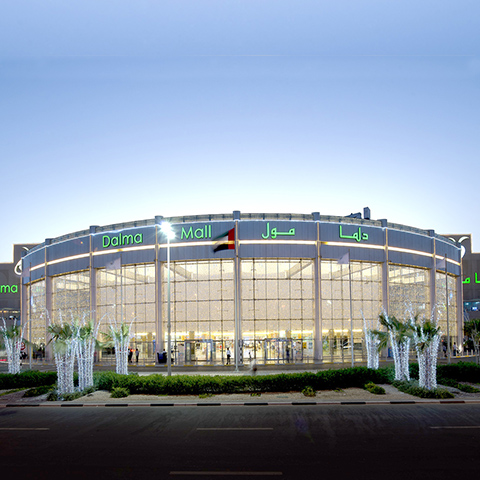

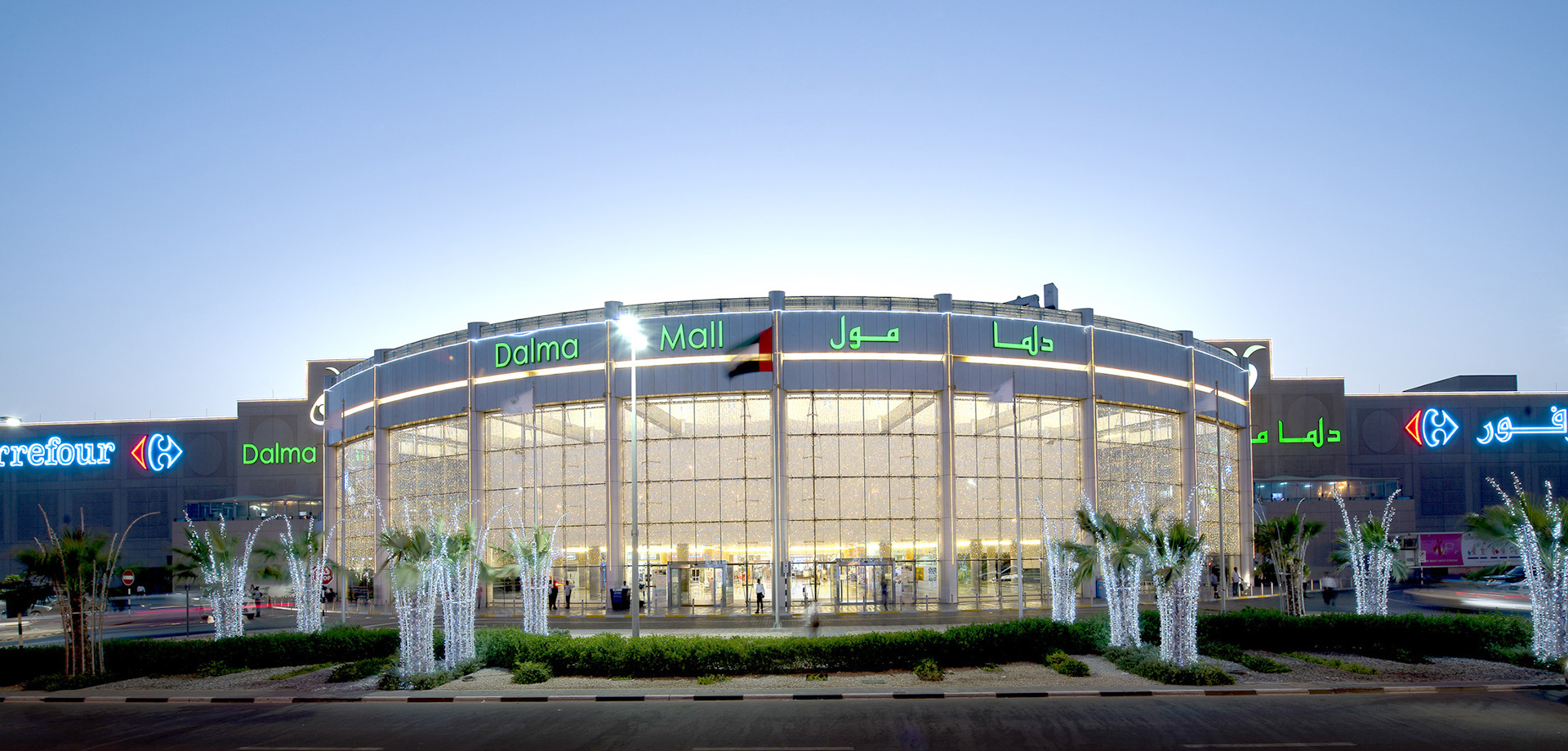

The Dalma mall is a 3 story shopping center located in Musaffah. The mall features multiple retail spaces, entertainment areas, food courts, movie theaters as well as other amenities. Construction was completed in two phases.

Project Type:
Commercial (Shopping Malls)
Size of Project (in m2):
224,000
Completion Date:
2010
Owner:
The Developers
Clients:
Darwish Engineering Emirates
Consultants:
Architect: Alain Durand - Henriot
EOR: Diar Consult
Contractors:
Darwish Engineering Emirates
e.construct Services:
Value Engineering
Precast Engineering
Scope of Work:
e.construct provided the structural design, drawings and documentation while applying value engineering techniques. Precast/prefab work including drawings, procurement, installation management and hand over was completed. e.construct also performed the architectural redesign which included shop drawings and fire safety design.
Construction Photos
Special Feature:

Through value engineering the project was converted to a fully precast/prefab structure. By using hollow core slabs the 500 mm thick slabs were reduced to 200 mm. Similar savings were achieved by using precast elements such as columns, prestressed beams, core walls, stairs, parapets and self-finished insulated facades.

Special Feature of e.construct Service:
During the first phase, the ground floor was as a parking space with retail stores and other utilities present on the 1st and 2nd floors. During the second phase, the ground floor was converted to additional retail space, and a multistory parking structure was added. The architectural redesign increased lease-able retail area by 50,000 m² and added 5,500 additional parking spaces to cope with the increasing demand.
Architectural Render

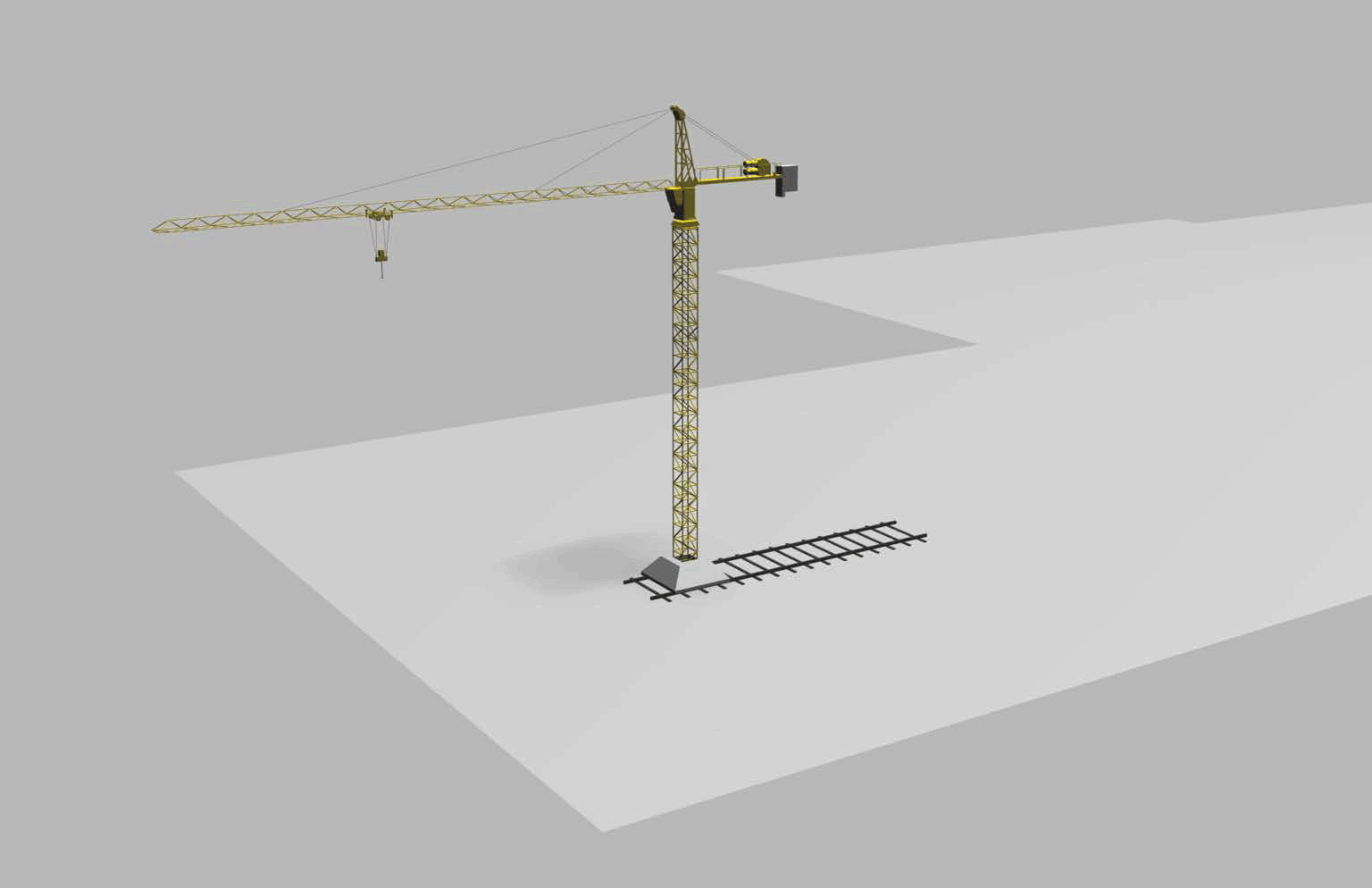

construction sequence
