Sabah Al-Salem University City - College of Art and Education

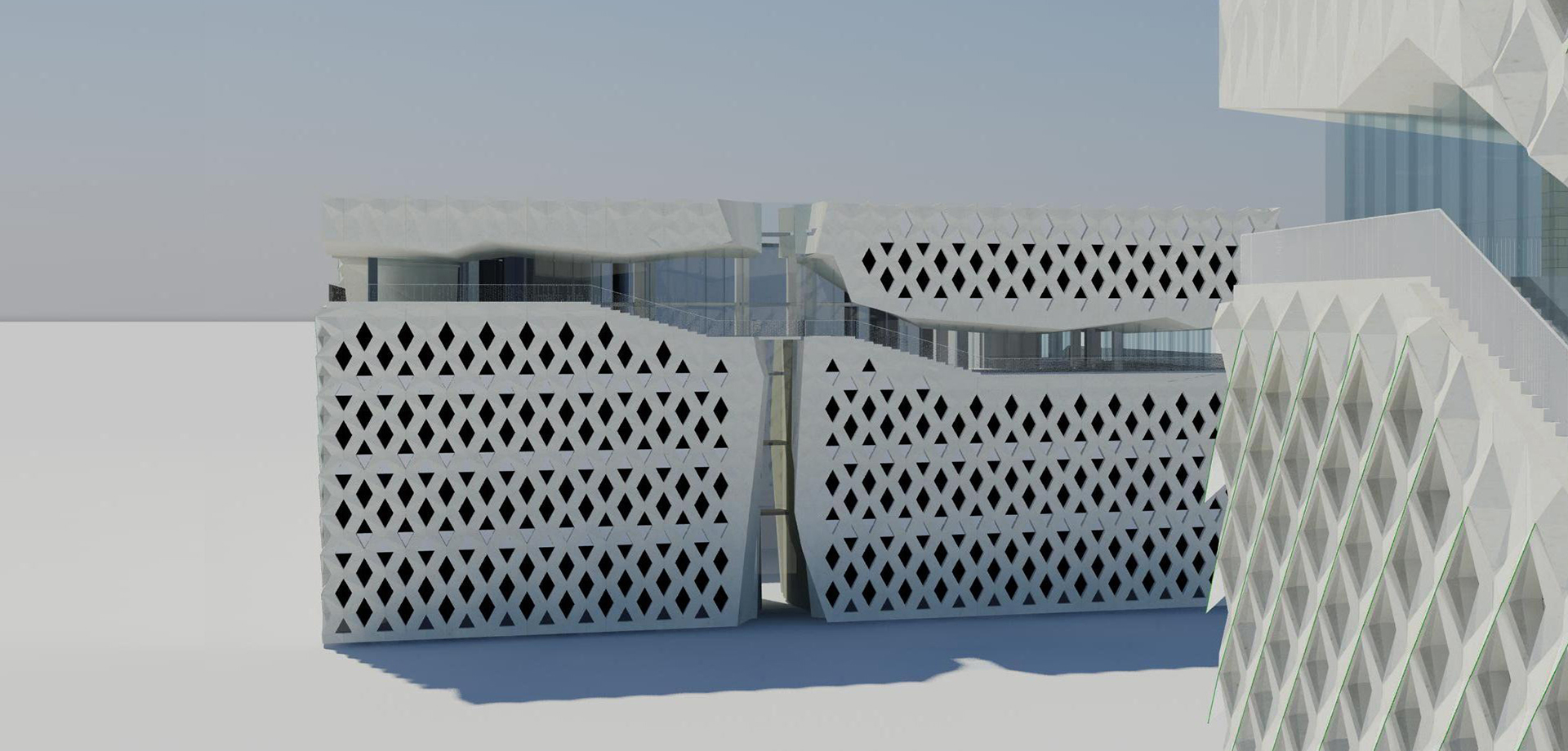

The College of Education consists of two educational facility buildings for women and men respectively, within Sabah Al-Salem University City. Each is a five-story building containing an array of educational facilities including lecture rooms, theaters, and internal courts. The College of Education is distinguished by the unique facade design, allowing natural daylight to illuminate the interior of the building without causing direct sun glare.
Provide value-engineering design and shop/fabrication drawings for the facade’s precast GFRC precast cladding.
Coordinate the design with the primary structure, as well as the facade’s glazing windows and glass feature shades.

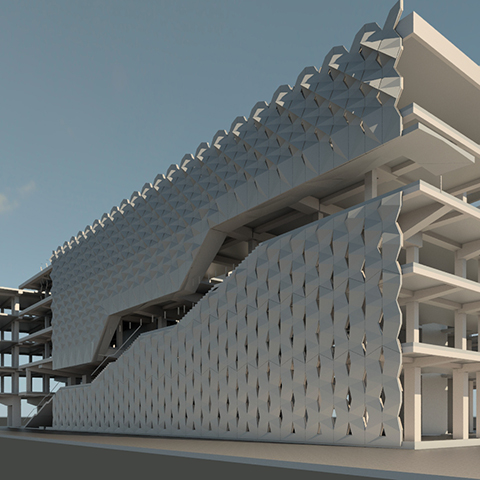

The project’s intricate facade cladding is designed in quite large panels supported and extending more than 600mm from the structure’s mainframe and then retreat back inwards.
The GFRC facade panels large spans and accommodating building movements, incorporating glass windows and glazed shading panels that fit directly to the GFRC panels. Panels were detailed to accommodate and coordinate with all these trades.
